Pdc Core Drill Bit Water Well Drilling

Material : diamond

inserts : 12

finish : Plain

use : Well Drilling

Processing Type : Casting

Function : Geotechnical drilling

customized support : OEM

Brand Name : JC

Model Number : 366

thread : external thread

Place of Origin : Hunan, China

working length (mm) : 6.5

Total Length : 10cm

Type : PDC core drill bit

specification : 130mm

drill type : Core Drill Bit

Certification : EPA

Price : $30-38 / piece

Machine Type : Drilling Equipment

MOQ : 5 pieces

Contact Now

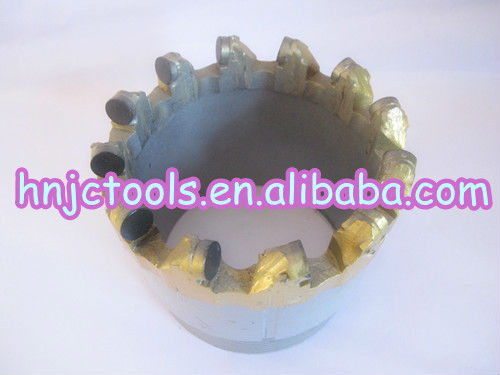

12 inserts pdc core drill bit water well drilling

Detailed Product Description:

PDCcore drill bits are widely used for mineral exploration,geological exploration, water and electricity, traffic construction, building etc. for rock core drilling, exploring and soil investigation

Our advantage:
1.deep and fast penetration .
2.Long using life
3. first quality level product with reasonable price.
4.best service and fast delivery.

5. more than 20years manufacturing experiance.

6.can make PDC drill bit according to customer's detail requirement.

7.We bought our own land and built our own factory;

8.In same quality, our price is best; in same price , our quality is best

Characteristics:

1.high wear resistance and impact resistant

2.longer drilling life

3.drilling efficiency

4.labor intensity can be reduced

5.advanced geometric design

Size:

Diameter	PDC cutter		Teeth NO.	Rock formation			Working way
60	High-strength plane PDC		5	Middle and hard			Cutting
65	High-strength plane PDC		5	Middle and hard			Cutting
75	High-strength plane PDC		6	Middle and hard			Cutting
94	High-strength plane PDC		6	Middle and hard			Cutting
94	High-strength plane PDC		8	Middle and hard			Cutting
113	High-strength plane PDC		8	Middle and hard			Cutting
133	High-strength plane PDC		10	Middle and hard			Cutting
153	High-strength plane PDC		14	Middle and hard			Cutting
171	High-strength plane PDC	16			Middle and hard	Cutting

Special requirements of different models can be customize

Six teeth PDC core bit

Name: PDC flat core bit Type:QX-P-601 Diameter:60,65,75,94,113,133. Wing:6 Grade: Normal, Enforced	Balanced Flow Hydraulic Design, avoid balling Higher sharp cutter Higher abrasion materials for gage protection	Applied to rock formation f≤12 Used for geological exploration,drilling gas drainage hole, drawing water hole

Name: PDC flat core bit
Type:QX-P-601
Diameter:60,65,75,94,113,133.
Wing:6
Grade: Normal, Enforced

Balanced Flow Hydraulic Design, avoid balling
Higher sharp cutter
Higher abrasion materials for gage protection

Applied to rock formation f≤12
Used for geological exploration,drilling gas drainage hole, drawing water hole

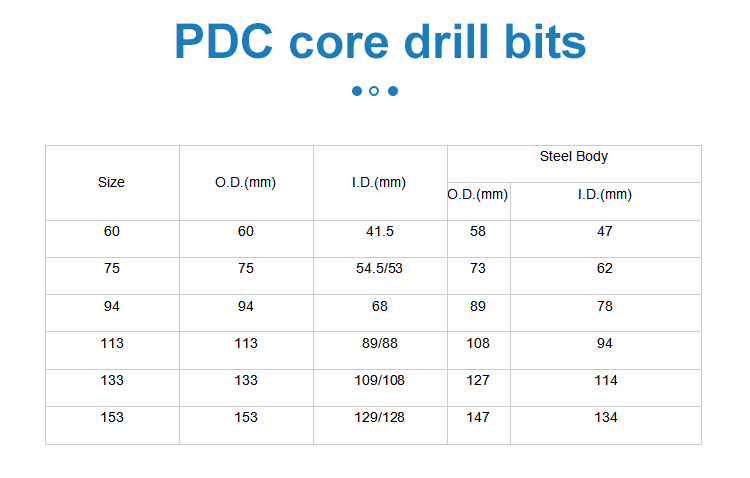

PDC core drill bits:

Size	O.D.(mm)	I.D.(mm)	Steel Body
Size	O.D.(mm)	I.D.(mm)	O.D.(mm)	I.D.(mm)
60	60	41.5	58	47
75	75	54.5/53	73	62
94	94	68	89	78
113	113	89/88	108	94
133	133	109/108	127	114
153	153	129/128	147	134

We also can produce and design as per clients’ drawings/samples/requirements.
